SCALE Driver Cores

SCALE Plug-and-play Drivers

SCALE Plug-and-play Drivers系列产品型号（点击某型号，可以查看该产品的pdf资料）

【SCALE-1 Plug-and-play Drivers】 & 【SCALE-2 Plug-and-play Drivers】
【SCALE-1型即插即用驱动器】和【SCALE-2型即插即用驱动器】专用型驱动器

型号	IGBT 等级	信号通道 & 驱动功率	门极电流	各厂家IGBT所配驱动器
				Iinfineon	Fuji	Mitsubishi
SCALE-1 Plug-and-play Drivers

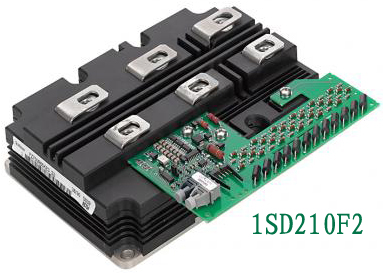

1SD210F2	4.5kV- 6.5 kV 200A-1200 A	1*2W	-6A/+10A	Iinfineon：1SD210F2-Fx200R65KF2 1SD210F2-Fx400R65KF2 1SD210F2-FZ600R65KF2 1SD210F2-FZ250R65KE3 1SD210F2-FZ500R65KE3 1SD210F2-FZ600R65KE3 1SD210F2-FZ750R65KE3 Mitsubishi：1SD210F2-CM200HG-130H 1SD210F2-CM600HG-130H

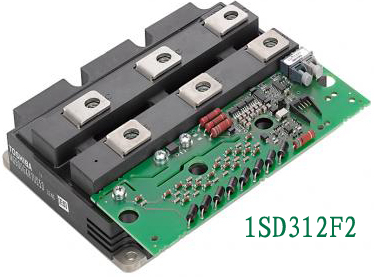

1SD312F2	4.5kV 400A-1200 A	1*3W	+12A	Mitsubishi：1SD312F2-CM400HB-90H 1SD312F2-CM600HB-90H 1SD312F2-CM900HB-90H 1SD312F2-CM900HC-90H 1SD312F2-CM1200HC-90R

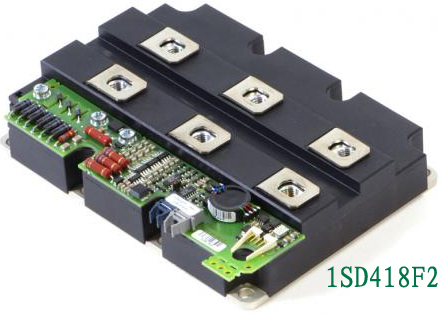

1SD418F2	1.7 kV-3.3kV 800 A- 2400 A	1*4W	±18A	Iinfineon：1SD418F2-FZ2400R17KF6 1SD418F2-FX800R33KF2 1SD418F2-FZ1200R33KF2 1SD418F2-FZ1200R33KL2C Mitsubishi：1SD418F2-CM1200HC-50H 1SD418F2-CM1200HB-66H 1SD418F2-CM1200HC-66H 1SD418F2-CM800E2C-66H

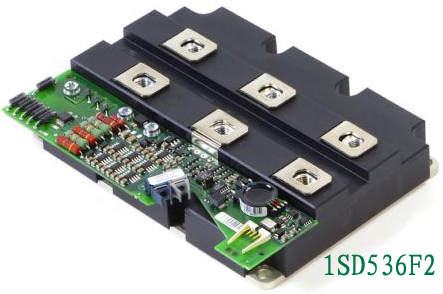

1SD536F2	1.2 kV to 3.3 kV 400 A to 3600 A	1*5W	±36A	Iinfineon：1SD536F2-FZ2400R12KE3 1SD536F2-FZ3600R12KE3 1SD536F2-FD1200R17KE3-K_B2 1SD536F2-FZ1600R17HP4_B2 1SD536F2-FZ1600R17KE3 1SD536F2-FZ1600R17KE3_B2 1SD536F2-FZ2400R17HP4_B2 1SD536F2-FZ2400R17HP4_B29 1SD536F2-FZ2400R17KE3 1SD536F2-FZ2400R17KF6 1SD536F2-FZ3600R17KE3 1SD536F2-FD1000R33HE3-K 1SD536F2-FD400R33KF2C 1SD536F2-FX800R33KF2 1SD536F2-FX800R33KF2 1SD536F2-FZ1000R33HL3 1SD536F2-FZ1200R33KF2 1SD536F2-FZ1200R33KL2C 1SD536F2-FZ1500R33HE3 1SD536F2-FZ1500R33HL3 Fuji：1SD536F2-1MBI1200U4C-120 1SD536F2-1MBI1600U4C-120 1SD536F2-1MBI3600U4D-120 1SD536F2-1MBI1200U4C-170 1SD536F2-1MBI1600U4C-170 1SD536F2-1MBI2400U4D-170 1SD536F2-1MBI3600U4D-170 Mitsubishi：1SD536F2-CM1200E4C-34N 1SD536F2-CM1800HC-34N 1SD536F2-CM2400HC-34N 1SD536F2-CM2400HCB-34N 1SD536F2-CM1200HC-50H 1SD536F2-CM1200HB-66H 1SD536F2-CM1200HC-66H 1SD536F2-CM1500HC-66R 1SD536F2-CM800E2C-66H 1SD536F2-CM800HB-66H 1SD536F2-CM800HC-66H

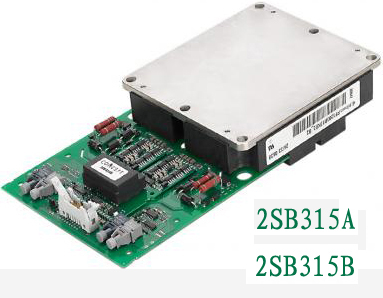

2SB315A	1.2 kV to 1.7 kV 800 A to 1200 A	2*3W	±15A	Iinfineon：2SB315A-FF800R12KE3 2SB315A-FF1200R17KE3_B2 2SB315A-FF800R17KF6 Fuji：2SB315A-2MBI800U4G-120 2SB315A-2MBI800U4G-170 2SB315A-2MBI800VT-170E Mitsubishi：2SB315A-CM1200DC-34N 2SB315A-CM800DZ-34H
2SB315B	1.2kV - 1.7kV 800A - 1200A	2*3W	±15A	Iinfineon：2SB315B-FF800R12KE3 2SB315B-FF1200R17KE3_B2 2SB315B-FF800R17KF6 Fuji：2SB315B-2MBI800U4G-120 2SB315B-2MBI1200U4G-170 2SB315B-2MBI800U4G-170 Mitsubishi：2SB315B-CM1200DC-34N 2SB315B-CM800DZ-34H

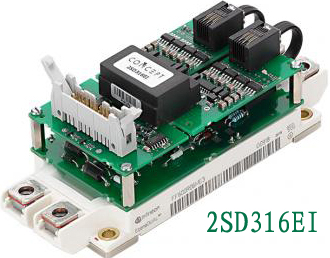

2SD316EI	1.2kV - 1.7kV 150A - 450A	2*3W	+16A/-6A	Iinfineon：2SD316EI-12 with DB01-FF150R12ME3G 2SD316EI-12 with DB01-FF225R12ME3 2SD316EI-12 with DB01-FF300R12ME3 2SD316EI-12 with DB01-FF450R12ME3 2SD316EI-12 with DB01-FF450R12ME4 2SD316EI-17 with DB01-FF150R17ME3G 2SD316EI-17 with DB01-FF300R17ME3 2SD316EI-17 with DB01-FF450R17ME3

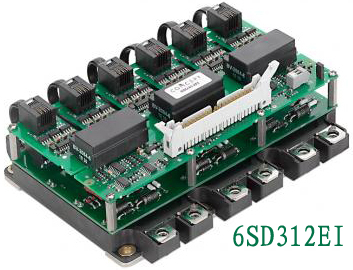

6SD312EI	1.2 kV - 1.7 kV 150A - 450A	6*3W	+12 A / -6 A	Fuji： 6SD312EI-12 with EB01-6MBI225U4-120 6SD312EI-17 with EB01-6MBI450U4-170 Iinfineon：6SD312EI-12 with EB01-FS150R12KE3G 6SD312EI-12 with EB01-FS225R12KE3 6SD312EI-12 with EB01-FS300R12KE3 6SD312EI-12 with EB01-FS450R12KE3 6SD312EI-12 with EB01-FS450R12KE4 6SD312EI-17 with EB01-FS150R17KE3G 6SD312EI-17 with EB01-FS300R17KE3 6SD312EI-17 with EB01-FS450R17KE3
SCALE-2 Plug-and-play Drivers
1SP0335	3.3 kV - 6.5 kV 250A - 1200A	1*23W	±35A	各厂家通用：1SP0335x2xx-33 1SP0335x2xx-45 1SP0335x2xx-65 Iinfineon：1SP0335x2xx-FZ800R33KL2C_B5 1SP0335x2xx-FZ1200R33KL2C_B5 1SP0335x2xx-FZ1200R45KL3_B5 1SP0335x2xx-FZ200R65KF2 1SP0335x2xx-FZ250R65KE3 1SP0335x2xx-FZ400R65KF2 1SP0335x2xx-FZ500R65KE3 1SP0335x2xx-FZ600R65KE3 1SP0335x2xx-FZ750R65KE3 1SP0335D2Sx-FZ750R65KE3 Mitsubishi：1SP0335x2xx-CM600HG-90H 1SP0335x2xx-CM900HG-90H 1SP0335x2xx-CM1200HG-90R 1SP0335x2xx-CM750HG-130R
1SP0340	4.5 kV	1*1.3W	±35A	各厂家通用：1SP0340x2xx-45
1SP0635	1.2kV - 3.3kV 800A - 3600A	1*3W	±35A	各厂家通用：1SP0635x2xx-12 1SP0635x2xx-17 1SP0635x2xx-33 Iinfineon：1SP0635x2xx-FZ1200R12HP4 1SP0635x2xx-FZ2400R12HP4 1SP0635x2xx-FZ3600R12HP4 1SP0635x2xx-FZ1800R17HP4_B29 1SP0635x2xx-FZ3600R17HP4 1SP0635x2xx-FZ1000R33HE3 1SP0635x2xx-FZ1000R33HL3 1SP0635x2xx-FZ1200R33HE3 1SP0635x2xx-FZ1200R33KF2C 1SP0635x2xx-FZ1500R33HE3 1SP0635x2xx-FZ1500R33HL3 Fuji：1SP0635x2xx-1MBI1600VR-170E 1SP0635x2xx-1MBI800UG-330 1SP0635x2xx-1MBI1200UE-330 1SP0635x2xx-1MBI1500UE-330 Mitsubishi：1SP0635x2xx-CM800HC-66H 1SP0635x2xx-CM1000HC-66R 1SP0635x2xx-CM1200HC-66H 1SP0635x2xx-CM1500HC-66R

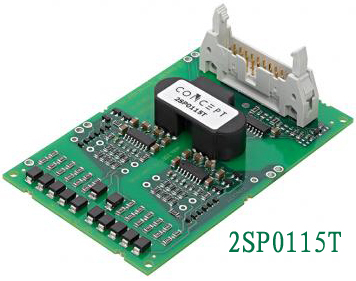

2SP0115T	600V - 1700V 150A - 600A	2*1W	+15A/-8A	各厂家通用：2SP0115T2Ax-06 2SP0115T2Ax-12 2SP0115T2Ax-17 Iinfineon：2SP0115T2Ax-FF450R06ME3 2SP0115T2Ax-FF600R06ME3 2SP0115T2Ax-FF150R12ME3G 2SP0115T2Ax-FF225R12ME4 2SP0115T2Ax-FF300R12ME3 2SP0115T2Ax-FF300R12ME4 2SP0115T2Ax-FF450R12ME3 2SP0115T2Ax-FF450R12ME4 2SP0115T2Ax-FF600R12ME4 2SP0115T2Ax-FF225R17ME4 2SP0115T2Ax-FF300R17ME3 2SP0115T2Ax-FF300R17ME4 2SP0115T2Ax-FF450R17ME3 2SP0115T2Ax-FF450R17ME4 2SP0115T2Ax-FF600R17ME4 Fuji：2SP0115T2Ax-2MBI225VN-120-50 2SP0115T2Ax-2MBI300VN-120-50 2SP0115T2Ax-2MBI450VN-120-50 2SP0115T2Ax-2MBI600VN-120-50 2SP0115T2Ax-2MBI300VN-170-50 2SP0115T2Ax-2MBI450U4N-170-50 2SP0115T2Ax-2MBI450VN-170-50 2SP0115T2Ax-2MBI550VN-170-50 Mitsubishi：2SP0115T2Ax-CM200DX-24S 2SP0115T2Ax-CM300DX-24S 2SP0115T2Ax-CM450DX-24S

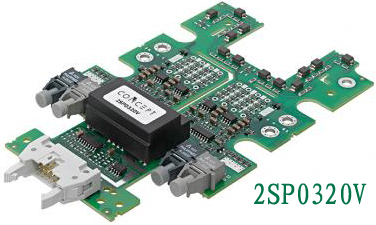

2SP0320	1200V - 1700V 450A -1400A	2*2W	±25A	各厂家通用：2SP0320x2Ax-12 2SP0320x2Bx-12 2SP0320x2Ax-17 Iinfineon：2SP0320x2Ax-FF450R12IE4 2SP0320x2Ax-FF600R12IE4 2SP0320x2Ax-FF900R12IE4 2SP0320x2Ax-FF900R12IP4 2SP0320x2Ax-FF1400R12IP4 2SP0320x2Ax-FF450R17IE4 2SP0320x2Ax-FF650R17IE4 2SP0320x2Ax-FF650R17IE4D_B2 2SP0320x2Ax-FF1000R17IE4 2SP0320x2Ax-FF1000R17IE4D_B2 2SP0320x2Ax-FF1400R17IP4 Fuji： 2SP0320x2Ax-2MBI900VXA-120E-50 2SP0320x2Ax-2MBI900VXA-120P-50 2SP0320x2Ax-2MBI1400VXB-120P-50 2SP0320x2Ax-2MBI650VXA-170E-50 2SP0320x2Ax-2MBI1000VXB-170E-50 2SP0320x2Ax-2MBI1400VXB-170E-50 2SP0320x2Ax-2MBI1400VXB-170P-50

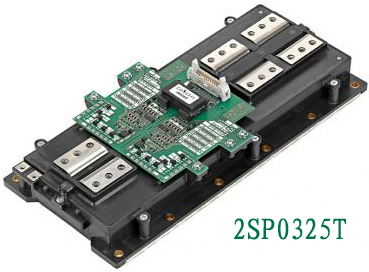

2SP0325	1200V - 1700V 1800A -2500A	2*2W	±25A	Mitsubishi：2SP0325x2Ax-CM2500DY-24S 2SP0325x2Ax-CM1800DY-34S

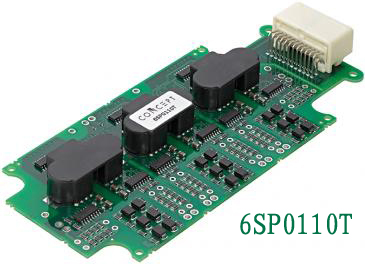

6SP0110T	650V 400A	6信道	±8A	Iinfineon：6SP0110T2Bx-FS400R07A1E3

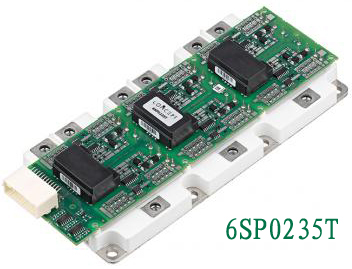

6SP0235T	650V 800A	6信道	±35A	Iinfineon：6SP0235T2Ax-FS800R07A2E3
